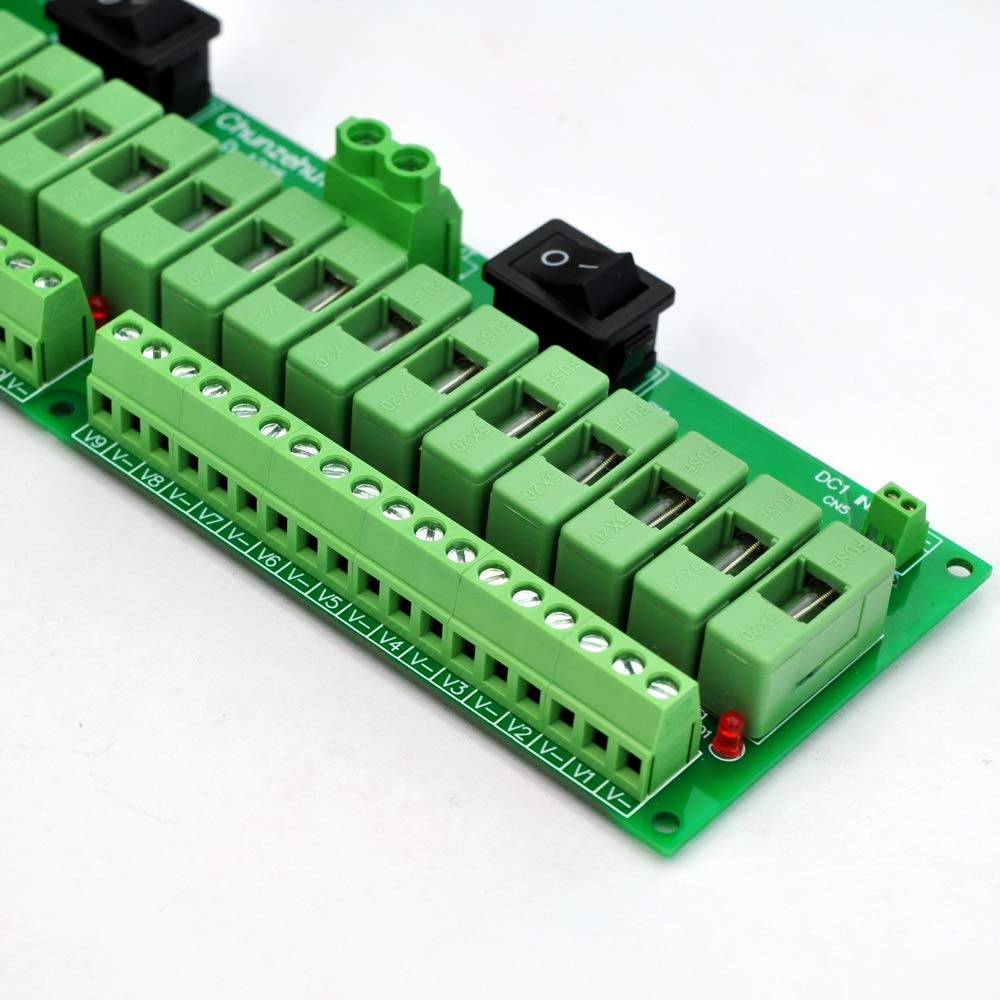

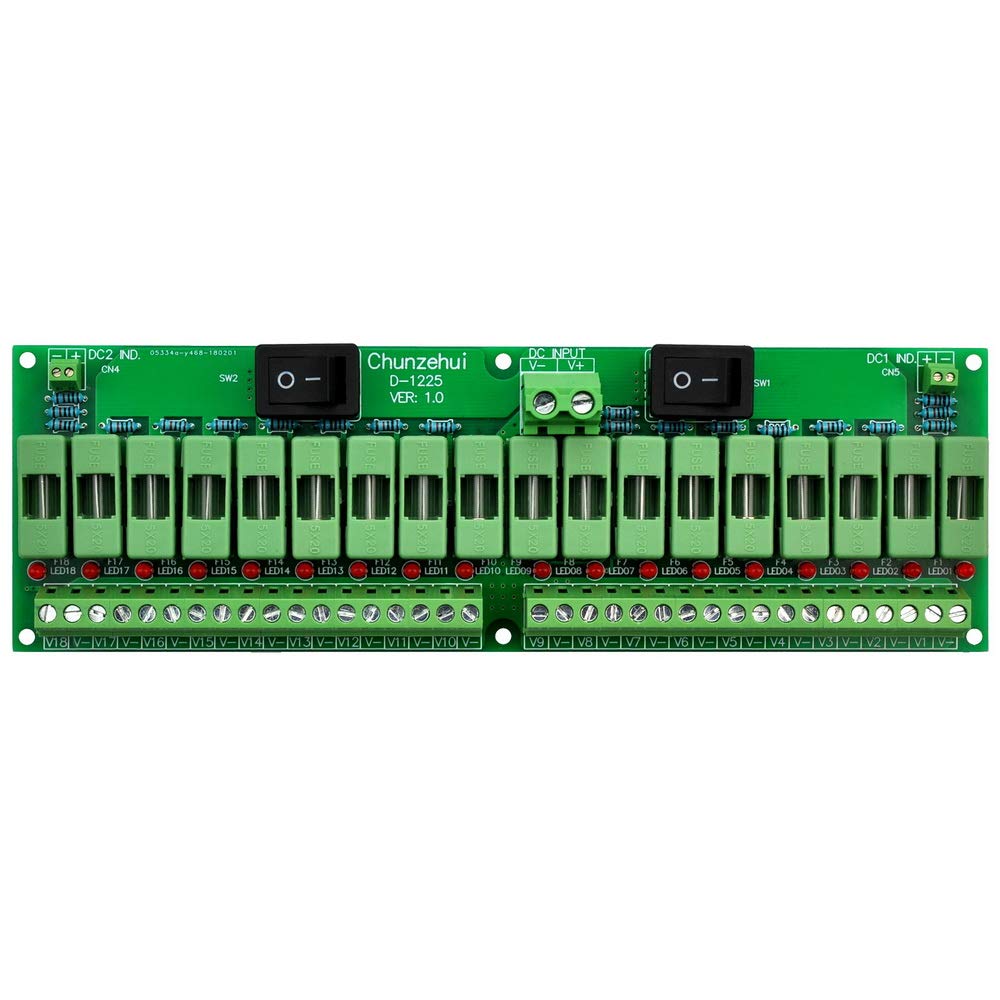

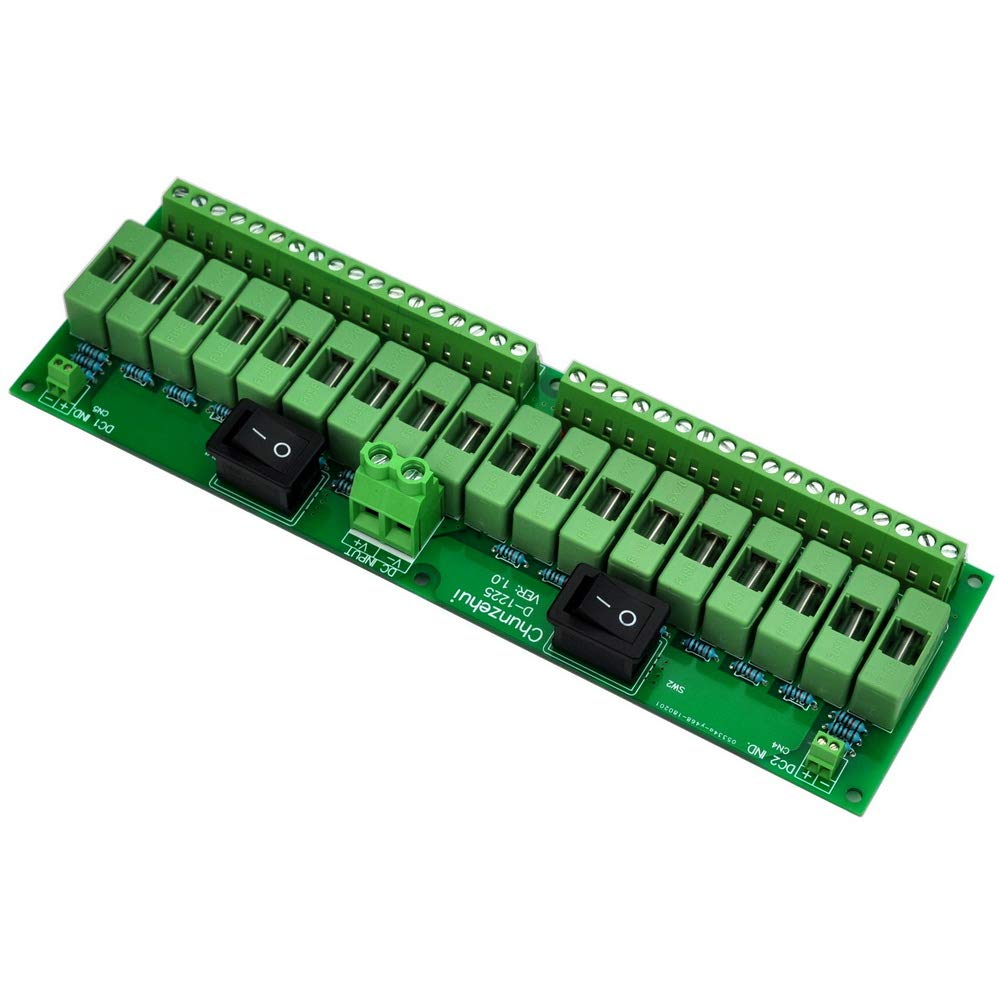

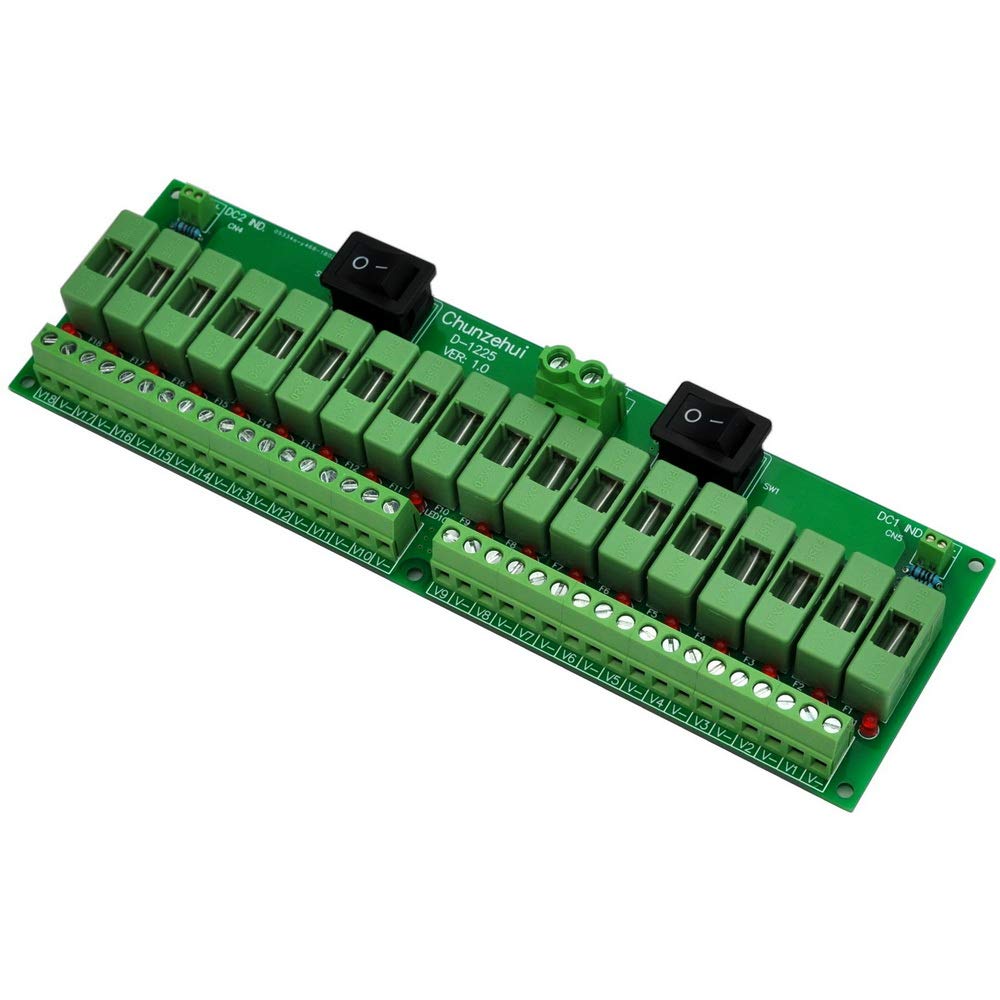

18 Channels 12V/24V 20A Power Distribution Fuse Module, Pack of 2 I59809
18 Channels 12V/24V 20A Power Distribution Fuse Module, Pack of 2 I59809

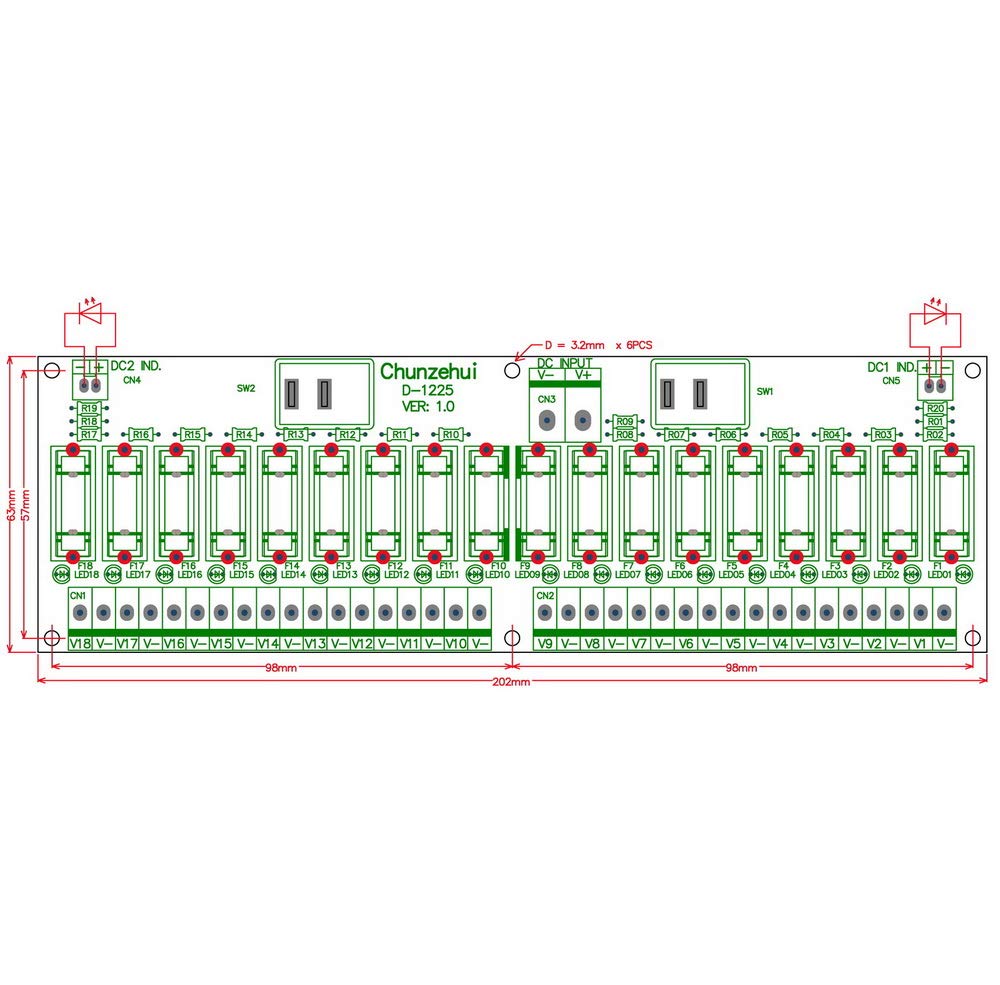

Work voltage: DC 5~24V, total current rating 20 Amp. Dimensions: 202mm x 63mm x 36mm / 7.95' x 2.48' x 1.42' (L x W x H).

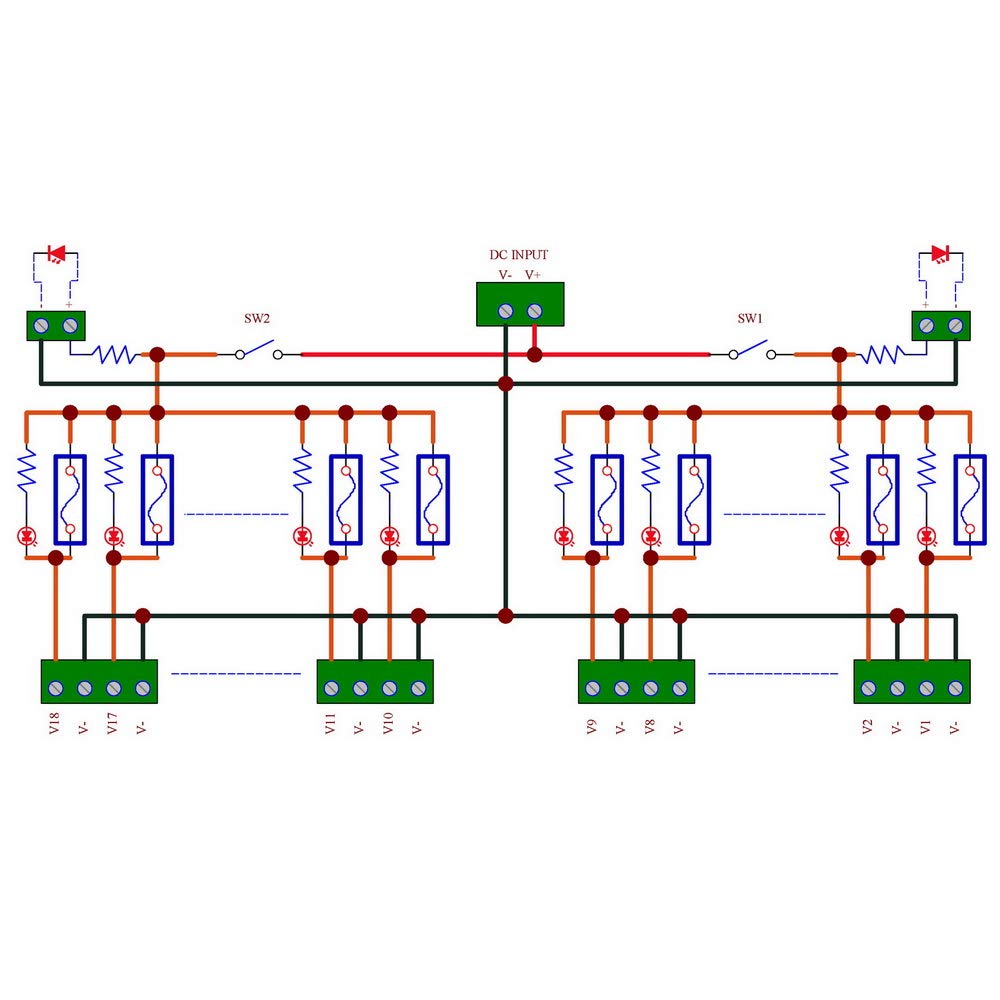

Fuse holders for 5x20mm(DxL) tube fuse, factory-installed slow blow 3Amp fuses. with fuse fail indication function. Dual switches design(each switch for 9 channels), FR-4 fiber glass PCB, dual copper layers.

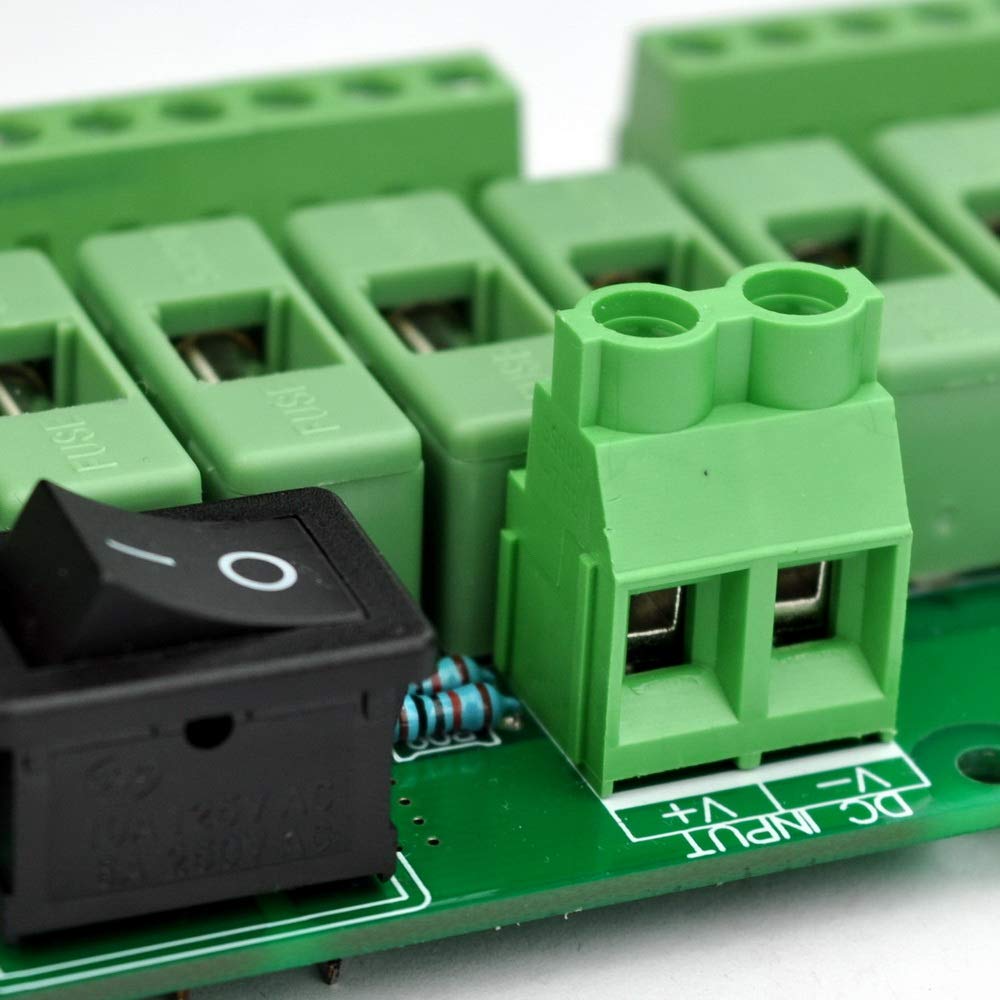

Input terminals: pitch - 7.62mm/0.3', wire size 26~10 AWG/4.0mm square, stripping length 8mm/0.32', Metric M3 slotted screw.

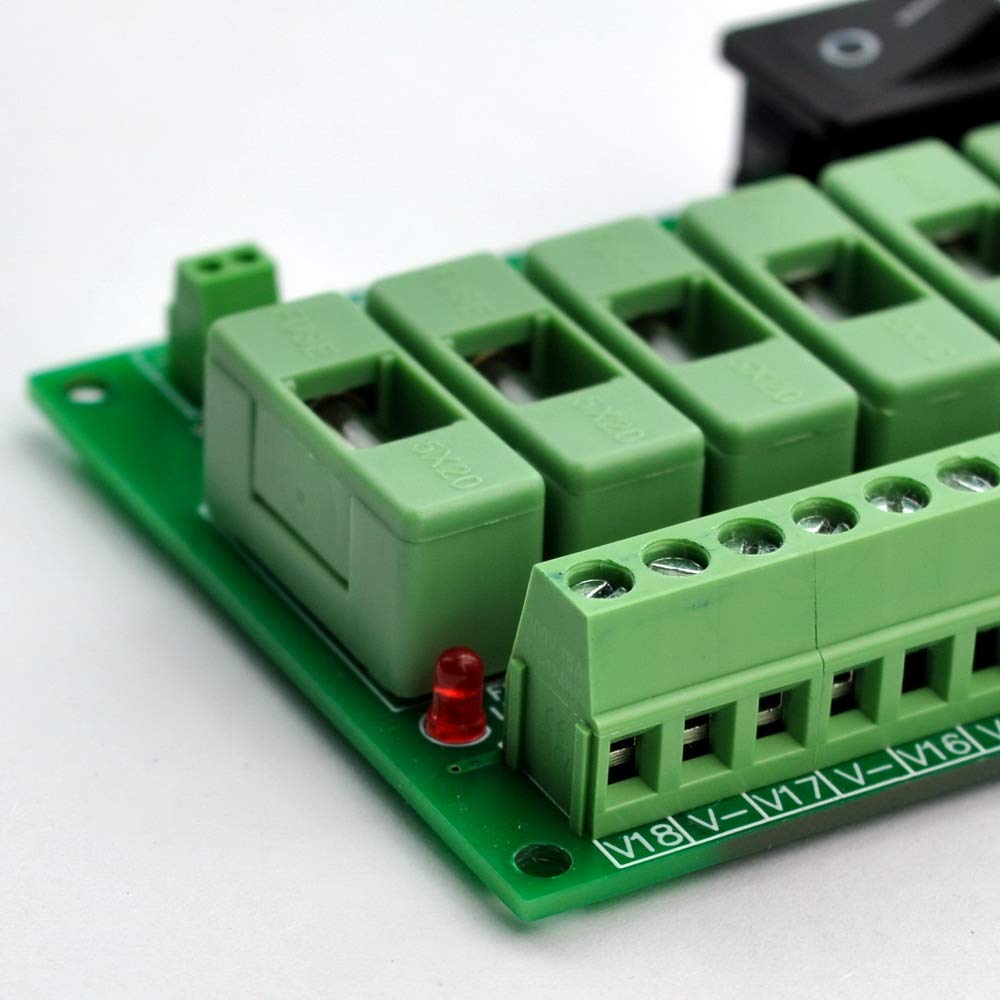

Output terminals: pitch - 5.0mm/0.197', wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28', Metric M2.5 slotted screw.
Switch indicator LED connect terminals: pitch - 2.54mm/0.1', wire size 26~18 AWG / 1.0mm square, stripping length 4.5mm/0.18', Metric M1.6 slotted screw.
